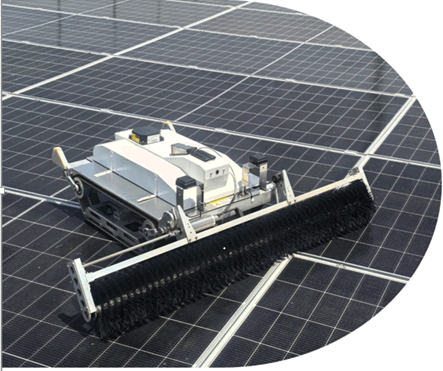

Solar Panel Cleaning Robot
2. Visual + RTK + IMU multi-sensor fusion
3. Front and rear dual vision modules based on deep learning
4. Security operation and maintenance function
Solar Panel Cleaning Robot
Product Specifications
| Type | No. | Item | Technical Indicators |
|---|---|---|---|
| Appearance Parameters |
1 | Roller Width (mm) | 1300 |
| 2 | Crawler Dimensions (mm) | 800580270 | |
| 3 | Track Width (mm) | 90 | |
| 4 | Crawler Weight (kg) | 21 (excluding battery) | |
| 5 | Battery Weight (kg) | 8 | |
| 6 | Single Roller Weight (kg) | 7 | |
| 7 | Number of Rollers | Front roller dry wash * 1 | |
| Operation Capability |
8 | Cleaning Efficiency (m²/h) | 1000 |
| 9 | Cleaning Duration / Endurance (h) | 5.5 | |
| 10 | Charging Time | 4 | |
| 11 | Battery Specification Capacity (Ah) | 44.8V/20Ah (1 kWh) | |
| 12 | Max. Operating Angle (°) | < 22 | |
| 13 | Max. Travel Speed (m/min) | ≤ 20 | |
| 14 | Max. Gap Crossing (mm) | > 200 | |
| 15 | Max. Obstacle Height (mm) | > 90 | |
| 16 | Static Pressure on Component Surface (pa) | 4000pa | |
| 17 | Waterproof & Dustproof Rating (IP) | IP65 | |
| 18 | Roller Speed (r/min) | 260 | |
| 19 | Working Temperature (°C) | -20~60 | |
| 20 | Operation | Automatic / APP Remote Control | |
| 21 | Navigation System | High-precision Radar + RTK + Vision |
Solar Panel Cleaning Robot
Product Specifications
The W1 Pro PV intelligent cleaning robot takes "efficient cleaning, intelligent O&M, safety, and reliability" as its core, integrating multiple core technologies and practical functions. The features of this product are as follows:

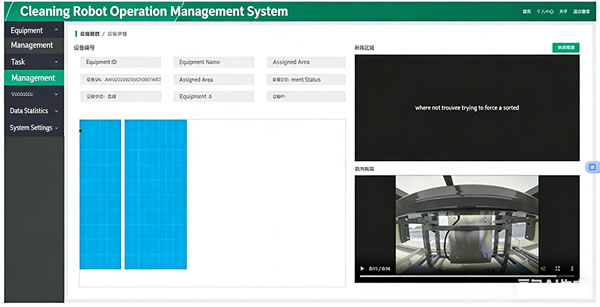

Real-time operation or monitoring via App and Cloud

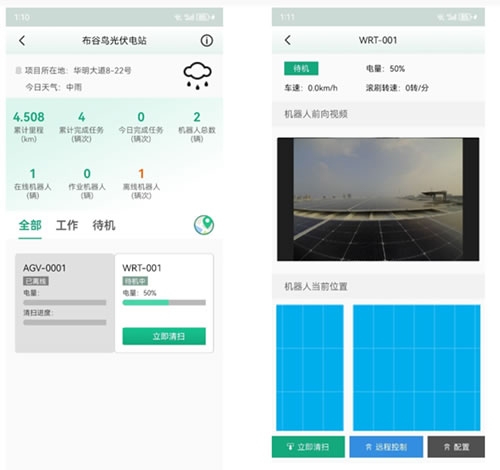

Phone control
View the device's real-time operating status on a mobile phone and issue scheduled task requirements. It also features basic functions such as fault self-diagnosis and notification.
Safety O&M Function
Capable of collecting on-site video data to monitor the local detailed status of PV components and other power station facilities.
Multi-sensor fusion of Vision + RTK + IMU
Precise positioning
Path planning, positioning, and motion control with precision controlled within 2 cm. It enables high-precision and high-reliability automatic bridging, automatic cleaning path planning, straight-line driving, four-layer anti-fall protection, and breakpoint continuation.
Rainy Day Cleaning Capability
The whole machine has an IP65 protection rating, ensuring wet cleaning of component frames, stubborn dust, and oily dust during rain, preventing dust from being washed by rain and accumulating on the frame edges, which could cause hot spots or affect power generation.
Front and rear dual-vision modules based on deep learning
Deep learning
Obstacle recognition and take-over requests. When the robot encounters an obstacle, it can report a request for take-over information, asking for manual intervention, and allowing remote manual control of the robot.
Obstacle Crossing Capability
The cleaning device can cross obstacles with a horizontal gap of no less than 20cm, a vertical height difference of no less than 9cm, and a component side misalignment of no less than 5cm.
