AWU202 Vehicle-mounted AI multi-functional controller
Computing power: 6TOPS It is equipped with a high-precision satellite positioning and combined inertial navigation module, a built-in WiFi6 communication module, an optional 4G/5G communication module, and an optional SSD hard drive.
Descriptions
Computing power: 6TOPS It is equipped with a high-precision satellite positioning and combined inertial navigation module, a built-in WiFi6 communication module,an optional 4G/5G communication module, and an optional SSD hard drive. It supports multiple interfaces such as GMSL, Ethernet, RS232, RS485, CAN, and USB, and is compatible with the connection of common sensors and peripheral devices. The system adopts a dual-system architecture of MCU+SoC, featuring high security and high reliability. Vehicle-mounted anti-vibration design, compatible with 12V and 24V automotive electrical systems; Adopting the Linux operating system, it provides a complete SDK program to support customers' secondary development and algorithm deployment.
APPLICATION SCENARIOS
Computing platform
| Item | Parameters |
|---|---|
| SoC | Rockchip RK3588, 8-core 64-bit CPU, with a main frequency of 2.0GHz |
| NPU | 6TOPS, supporting mixed operations of INT4/NT8/INT16 |
| MCU | NXP FS32K, ASIL-B |
| Memory | 8GB LPDDR4 |
| Storage | 64GB e.MMC (Optional) |
| WiFi module | It is equipped with WiFi6 and supports both AP and STA modes |
| Item | Parameters |
|---|---|
| GNSS module | Built-in, supporting IMU and RTK |
| Communication module | Supports single 4G, single 5G communication modules, or 4G+5G dual modules (optional) |
| SSD | Support M.2 M Key SSD (optional) |
| Decoding chip | MAX96712 |
| Information security | Support encryption (built-in in ARM) |
| Operating system | Linux (Ubuntu22.04) |
Interface configuration
| Item | Parameters |
|---|---|
| Power input | 1-group, BAT, GND |
| Video output | 1-channel, HDMI 2.1 Type-A |
| Video input | 8-channels, GMSL Input |
| CAN | 5-channels, CAN2.0, Compatible with CANFD |
| ADC | 2-channels |
| I/O interface | 4-channels, Configurable IN/OUT |
| RS232 | 2-channels, Full duplex |
| RS485 | 2-channels, Half-duplex |
| Remote control | 1-channel, SBUS |
| ACC signal | 1-channel, ACC Wake up |
| Power output | 2-channels, BAT+0.5A |
| USB | 1-channel, USB3.0, 5V/1A |
| Ethernet | 2-channels, 1000BASE-TX, No POE 2-channels, 1000BASE-T1 |
| GPS second pulse | 1-channel, 1PPS-5V-OUT |
| GPS RS232 | 1-channel, GPS-RS232-TX |
| Audio | 2-channels, MIC Audio input; 1-channel, Audio output |
| SIM card slot | 2pcs, Mini SIM card slot, dual card positions |
| Antenna interface | GPS antenna, WiFi antenna, 4G antenna, 5G antenna |
| Debug | 1-channel, Type-C, ARM, MCU debugging |
Performance index
| Item | Parameters |
|---|---|
| Working voltage | DC12V/24V ± 20% |
| Working temperature | -30℃ ~ +70℃ (Customizable: -40℃ to +85℃) |
| Protection grade | IP 65 |
| dissipation method | Conduction, radiation |
| Net weight | ≈1.7kg |
| Size L*W*H | 261x 148 x 62mm (Installation brackets and connectors are not included) |

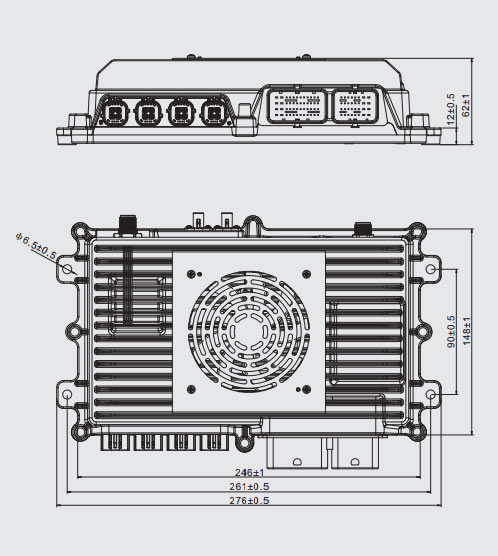

Product size Unit: mm
