The computing power can be configured at 200T and 275TOPS. It is equipped with a high-precision satellite positioning and combined inertial navigation module, a built-in WIFI communication module, an optional 5G communication module, and an optional SSD hard drive. Support the connection of multiple GMSL cameras; It supports multiple industrial Ethernet, RS232, RS485, CAN, USB and other interfaces, and is compatible with the connection of common sensors and peripheral devices. The system adopts a dual-system structure of MCU+SoC, featuring high security and high reliability levels. Vehicle-mounted shock-resistant design, compatible with 12V and 24V automotive electrical systems; It can be used in scenarios such as low-speed unmanned vehicles, wheeled robots, construction machinery, agricultural machinery, and intelligent equipment, to achieve applications such as AI intelligent monitoring and AI automatic control. It adopts the Ubuntu operating system and provides a complete SDK program to support customers' secondary development and algorithm deployment.
Application Scenarios
Interface configuration
| Power input |
1-group, ACC, BAT, GND |
| Video output |
1-channel, HDMI 2.1 Type-A |
| Video input |
8-channels, GMSL2 |
| Ethernet |
4-channels, 1000BASE-T, Support POE |
| USB |
3-channels, USB2.0*2、USB3.2*1 |
| CAN |
5-channels, CAN2.0, Compatible with CANFD |
| GPS second pulse |
1-channel, input; 4-channels, output |
| GPS RS232 |
1-channel, level input; 4-channels, output |
| RS232 |
2-channels, Full duplex |
| RS485 |
1-channel, Half-duplex |
| I/O interface |
4-channels, 0V-30V |
| ADC |
2-channels |
| ACC input signal |
1-channel, 0V-30V |
| Vehicle speed pulse signal |
1-channel, pulse input |
| Automobile direction signal |
1-channel, level input |
| Power output |
4-channels, 9V/1A*1, 9V/0.3A*2, 5V/0.3A*1 |
| SSD interface |
1 piece, Support M.2 M Key SSD |
| SIM card slot |
1 piece, Micro SIM |
Computing platform
| SoC |
NVIDIA Jetson AGX Orin |
| AI performance |
200 TOPS (INT8) |
| GPU |
1792-core NVIDIA Ampere c GPU with 56 Tensor Cores, Max Frequency 930 MHz |
| CPU |
8-core Arm® Cortex™-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3, Max Frequency 2.2 GHz |
| Memory/Storage |
32GB 256 bits LPDDR5; 64GB eMMC 5.1 |
| MCU |
NXP FS32K, ASIL-B |
| GNSS |
Ublox ZED-F9K, Built-in IMU |
| WiFi module |
WiFi6, Support simultaneously AP、STA |
| Communication module |
5G, M.2 package (optional) |
| Decoding chip |
MAX96712 |
Performance index
| Working voltage |
DC12V/24V ± 20% |
| Working temperature |
-25℃ ~ +70℃ |
| Protection grade |
IP 5x |
| Net weight |
≈2.5kg |

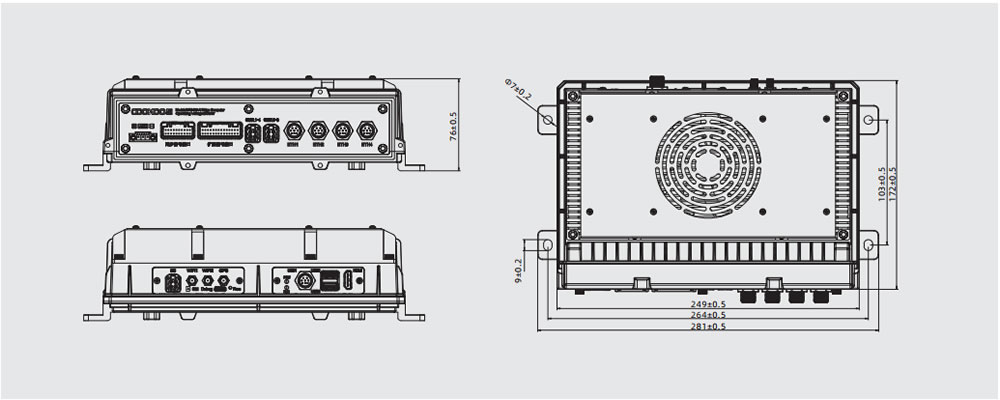

Product size Unit: mm
