AWU205 Vehicle-mounted AI multi-functional controller
Developed and designed based on Rockchip RK3588 ARM chip and highsecurity-level MCU, it supports RTK+IMU, WiFi, LORA, 4G functions, and supports the connection of 4 AHD cameras.
Descriptions
Developed and designed based on Rockchip RK3588 ARM chip and highsecurity-level MCU, it supports RTK+IMU, WiFi, LORA, 4G functions, and supports the connection of 4 AHD cameras. The whole machine features strong vibration resistance and IP65-level water resistance, which can meet the AI application requirements of scenarios such as automatic lawn mowing robots, photovoltaic cleaning robots, agricultural machinery, and construction machinery.
APPLICATION SCENARIOS
Computing platform
| Item | Parameters |
|---|---|
| SoC | Rockchip Rk3588 |
| CPU | 8-core 64-bit CPU with a main frequency of 2.0GHz |
| GPU | ARM Mali-G610 MP4 4-core GPU |
| NPU | 6TOPS, supporting mixed operations of INT4/NT8/INT16 |
| MCU | NXP FS32K, ASIL-B |
| Memory | LPDDR4 8GB |
| Storage | e.MMC 5.1 64GB |
| Item | Parameters |
|---|---|
| GNSS module | Built-in, supporting IMU and RTK |
| LORA module | Built-in |
| WiFi module | It is equipped with WiFi6 and supports both AP and STA modes |
| Communication module | Support 4G (optional) |
| SSD | Support M.2 M Key SSD (optional) |
| Information security | Support encryption (built-in in ARM) |
| Operating system | Linux (Ubuntu22.04) |
Interface configuration
| Item | Parameters |
|---|---|
| Power input | 1-group, BAT, GND |
| Video output | 2-channels, VGA*1, Debugging HDMI 2.1 Type-A*1 |
| Video output | 4-channels, AHD camera input |
| Ethernet | 1-channel, Independent network segment, 1000BASE-T |
| USB | 2-channels, USB3.0 |
| RS 232 | 2-channels, Full duplex |
| RS 485 | 2-channels, Half-duplex |
| CAN | 2-channels, CAN2.0, support CANFD |
| I/O | 4-channels, Switch signal input*2、Output*2 |
| Direction signal | 2-channels |
| Speed signal | 2-channels, Vehicle speed*1, Wheel speed*1 |
| GPS | 2-channels, Synchronous clock signal*1、External synchronization signal*1 |
| ACC signal | 1-channel |
| Power output | 1-channel, 9-12V output, 0.5A |
| Audio | 2-channels, Input*1; output*1 |
| SIM card slot | 1pcs, Mini SIM card slot |
| SSD interface | 1pcs, Storage expansion |
| Antenna interface | 4-groups, 4G*2、WiFi*2、RTK*2、LORA*1 |
Performance index
| Item | Parameters |
|---|---|
| Working voltage | DC12V/24V ± 20% |
| Working temperature | -30℃~+70℃ (Customizable: -40℃ to +85℃) |
| Protection grade | IP 65 |
| Heat dissipation method | Conduction + radiation |
| Net weight | ≈1.4kg |
| Size L*W*H | 196x147x52mm (Installation brackets and connectors are not included) |

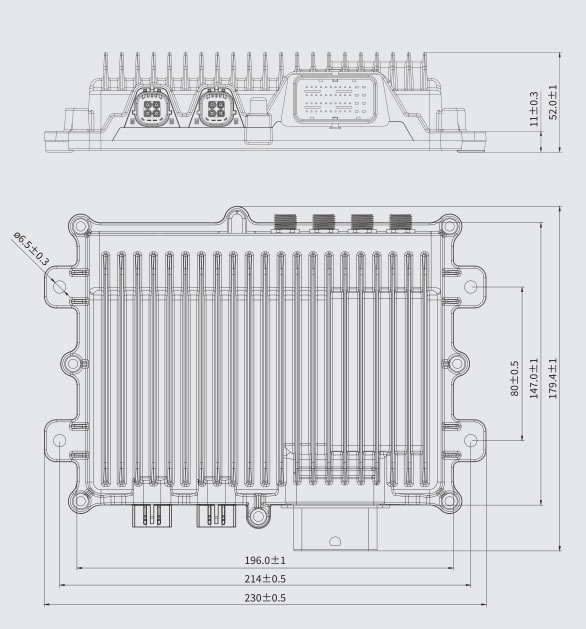

Product size Unit: mm
