AWU408 Autonomous driving domain controller
The GPU+DLA computing power is as high as 508TOPS (INT8), and it is an Infineon Aurix Tc397 ASIL-class MCU. It features a rich array of peripheral interfaces, supporting multiple GMSL, in-vehicle Ethernet, CAN and other interfaces.
Descriptions
The GPU+DLA computing power is as high as 508TOPS (INT8), and it is an Infineon Aurix Tc397 ASIL-class MCU. It features a rich array of peripheral interfaces, supporting multiple GMSL, in-vehicle Ethernet, CAN and other interfaces. It can be connected to peripheral units such as high-definition digital cameras, lidars, millimeter-wave radars, ultrasonic radars, and high-precision positioning modules, and supports data disk processing. It has the complete attributes required for autonomous driving, such as sensor data collection, processing, calculation, and vehicle control. Meanwhile, the system also takes into account the design of safety redundancy.
APPLICATION SCENARIOS
Computing platform
| Item | Parameters |
|---|---|
| SoC | NVIDIA Drive Orin-X * 2 |
| CPU | 12cores Arm Cortex A78AE ARM64 CPUs * 2 |
| GPU | 2 GPC /16SMs /5FP32 / 10 FP16 CUDA TFLops * 2 |
| Tensor Core | 167 TOPS, INT8 DLTOPs * 2 |
| DLA | 87 TOPS, INT8 DLTOPs * 2 |
| MCU | Infineon Aurix TC397, ASIL-D |
Computing platform
| Item | Parameters |
|---|---|
| Memory | 32GB LPDDR5 * 2 |
| Storage | 64 MB NOR Boot Flash * 2 8 MB NOR Secure Key Flash * 2, 256GB UFS 3.1 * 2 |
| SOC Safety | FuSa ASIL-B Chip, ASIL-D Systematic |
| SOC software function | Linux operating system, time synchronization, storage, network security |
| MCU software functions | Bootloader, power management, SPI/ Ethernet communication, time synchronization, AUTOSAR, network security, OTA |
Standard Interfaces
| Item | AWU408-A01 | AWU408-A02 | AWU408-B01 | AWU408-B02 |
|---|---|---|---|---|
| Power Input | 1 channel, KL30 | |||
| Wake-up Signal Input | 2 channels, KL15 | |||
| CAN | 12 channels | 11 channels | ||
| Supports CAN-FD | ||||
| Ethernet | 6 channels, 1000BASE-T1 Vehicle Ethernet | |||
| Video Input | 14 channels, GMSL2 | 12 channels, GMSL2 | 14 channels, GMSL2 | 12 channels, GMSL2 |
| GPS Pulse Per Second (PPS) | 1 channel, PPS Input | |||
| GPI | 3 channels, 3-way GPI Input | |||
| PCIE | 2 channels, supports external hard disk, PCIE-NVMe U.2 | |||
| Coolant | / | 1 channel, Input / Output | ||
Performance Metrics
| Item | Parameter |
|---|---|
| Vibration | Random Vibration Acceleration: 2Grms |
| Shock | 50g, 11ms |
| EMC | GMW3097-2017 |
| Power Connector | Automotive Grade |
| Operating Voltage | DC 9~16V |
| Maximum Power Consumption | 250W |
| Operating Temperature | -40℃ ~ +85℃ |
| Cooling Method | Water Cooling, Air Cooling |
| Operating Humidity | 10% ~ 95% (65℃) |
| Weight | Approx. 3.8 kg |
| Dimensions (L*W*H) | 334×205×45mm (Water Cooling)/ 306×205×82mm (Air Cooling) |

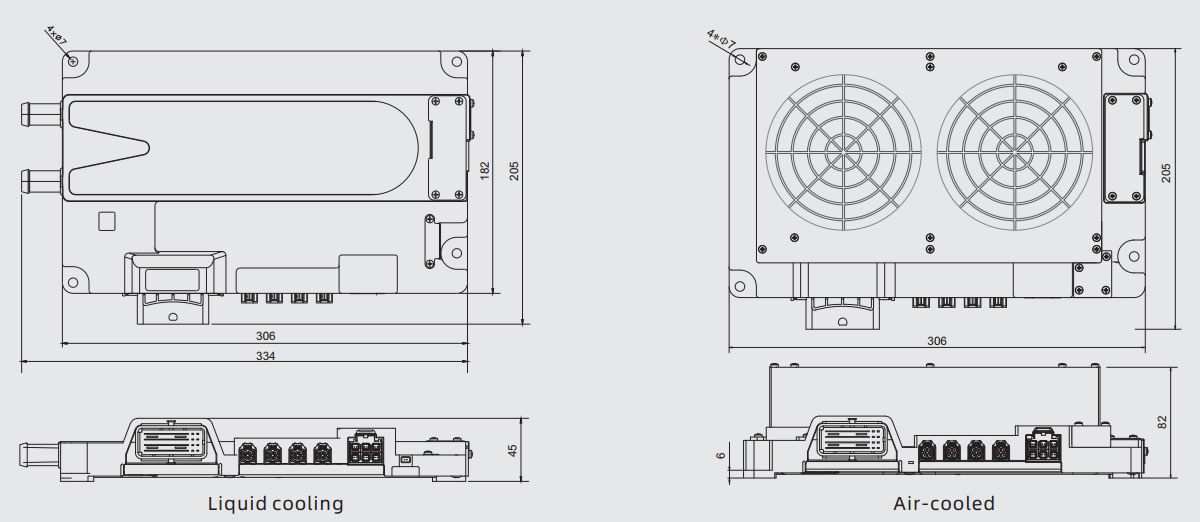

Product size Unit: mm
