AWU407 Autonomous driving domain controller
The Aurix Tc397 ASIL-D-class MCU supports multiple interfaces such as GMSL,vehicle Ethernet, CAN, RS232, and GPI, and can be connected to peripheral units such as high-definition digital cameras, lidars, millimeter-wave radars
Descriptions
The Aurix Tc397 ASIL-D-class MCU supports multiple interfaces such as GMSL, vehicle Ethernet, CAN, RS232, and GPI, and can be connected to peripheral units such as high-definition digital cameras, lidars, millimeter-wave radars, ultrasonic radars, and high-precision positioning modules. The Orin-X module is responsible for processing data from cameras and lidar, and combines data from millimeter-wave radar, ultrasonic radar, GNSS/IMU, etc. to achieve environmental perception and decision-making for autonomous driving. The Safety MCU is responsible for the line control interaction at the execution layer.
APPLICATION SCENARIOS
Computing platform
| Item | Parameters |
|---|---|
| SoC | NVIDIA Drive Orin-X |
| CPU | 12cores Arm Cortex A78AE ARM64 CPUs |
| GPU | 2 GPC /16SMs /5FP32 / 10 FP16 CUDA TFLops |
| Tensor Core | 167 TOPS, INT8 DLTOPs |
| DLA | 87 TOPS, INT8 DLTOPs |
| Memory | 32GB LPDDR5 |
| Storage | 32 GB eMMC 64 MB NOR Boot Flash 8 MB NOR Secure Key Flash 256GB UFS 3.1 |
| MCU | Infineon Aurix TC397, ASIL-D |
| SOC Safety | FUSA ASIL-B Chip, ASIL-D Systematic |
| SOC software function | Linux operating system, time synchronization, diagnosis, display, audio, storage, network security |
| MCU software functions | Bootloader, power management, SPI/ Ethernet communication, diagnostics, time synchronization, AUTOSAR, network security, Fusa function, OTA |
Interface configuration
| Item | Parameters |
|---|---|
| Power input | 2-channels, KL30 |
| Wake-up signal input | 2-channels, KL15 |
| CAN | 7-channels, Support CAN-FD |
| RS 232 | 1-channel, Input, Used for GPRMC |
| GPI | 3-channels, GPI Input |
| Ethernet | 6-channels, 1000BASE-T1 Gigabit vehicle Ethernet |
| Video input | 12-channels, GMSL2, Camera |
| GPS 1PPS | 1-channel, 1PPS Input |
| PCIe | 1-channel, External hard drive, PCIe-NVMe U.2 |
Interface index
| Item | Parameters |
|---|---|
| Power input | 2-channels, KL30 |
| Wake-up signal input | 2-channels, KL15 |
| CAN | 7-channels, Support CAN-FD |
| RS 232 | 1-channel, Input, Used for GPRMC |
| GPI | 3-channels, GPI Input |
| Ethernet | 6-channels, 1000BASE-T1 Gigabit vehicle Ethernet |
| Video input | 12-channels, GMSL2, Camera |
| GPS 1PPS | 1-channel, 1PPS Input |
| PCIe | 1-channel, External hard drive, PCIe-NVMe U.2 |

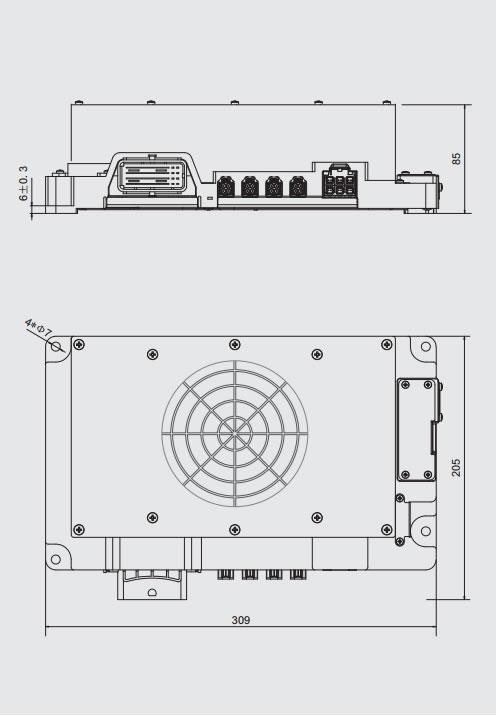

Product size Unit: mm
