AWU406 Vehicle-mounted AI multi-functional controller
Based on the NVIDIA Jetson AGX Orin module, it expands functions such as WiFi5, 4G, and 5G, supports up to 12 GMSL and 8 Ethernet interfaces, supports external GPS clock timing synchronization, supports NTP/PTP clock timing synchronization
Descriptions
Based on the NVIDIA Jetson AGX Orin module, it expands functions such as WiFi5, 4G, and 5G, supports up to 12 GMSL and 8 Ethernet interfaces, supports external GPS clock timing synchronization, supports NTP/PTP clock timing synchronization, and supports remote wake-up, ACC wake-up, and CAN wakeup. It can be connected to peripheral units such as high-definition digital cameras, lidars, millimeter-wave radars, ultrasonic radars, high-precision positioning modules, and remote controls, with a protection level of IP65, meeting the application requirements of scenarios such as autonomous driving, remote driving, data storage, and mobile communication.
APPLICATION SCENARIOS
Computing platform
| Item | AWU406-A01 | AWU406-B01 |
|---|---|---|
| SoC | NVIDIA Jetson AGX Orin | |
| AI performance | 200 TOPS (INT8) | 275 TOPS (INT8) |
| GPU | 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores,Max Frequency 930 MHz | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores,Max Frequency 1.3 GHz |
| CPU | 8-core Arm® Cortex™-A78AE v8.2 64-bit CPU 2MB L2 +4MB L3,Max Frequency 2.2 GHz | 12-core Arm® Cortex™-A78AE v8.2 64-bit CPU 3MB L2 +6MB L3,Max Frequency 2.2 GHz |
| Memory/Storage | 32GB 256 bits LPDDR5; 64GB eMMC5.1 | 64GB 256 bits LPDDR5; 64GB eMMC5.1 |
| MCU | NXP FS32K, Arm Cortex-M7, 160 MHz, 4 MB Flash, ASIL B |
Interface configuration
| Item | Parameters |
|---|---|
| Power input | 1-group, BAT, GND, Support ACC wake-up |
| Video output | 1-channel, HDMI 2.1 Type-A |
| Video input | 12-channels, GMSL2 |
| Ethernet | 8-channels, 1000BASE-TX, Support POE |
| USB | 2-channels, Support USB2.0 |
| CAN | 8-channels, CAN2.0, Support CANFD |
| SBUS | 1-channel |
| GPS 1PPS | 1-channel, input 0V-10V; 4-channels, output5V/0.5A |
| GPS RS232 | 1-channel, level input; 4-channels, output |
| RS232 | 3-channels, Full duplex |
| RS422 | 2-channels, Full duplex |
| RS485 | 2-channels, Half-duplex |
| I/O interface | 4-channels input; 4-channels output |
| Analog signal input | 2-channels, input range 0V-30V, 12 bits AD |
| DC OUT | 4-channels, 12V/1A*2, 12V/0.5A*2 |
| Storage expansion | 2 pieces, M.2 M Key SSD*1; TF card*1 |
| Debug interface | 1-channel, USB2.0, debugging and burning |
| Audio | 1-channel, MIC input; 2-channels, 10W output |
| Communication module | 3-channels, 4G*2, 5G*1 |
Performance index
| Item | Parameters |
|---|---|
| Working voltage | DC12V/24V ± 20% |
| Working temperature | -25℃ ~ +70℃ |
| Protection grade | IP65 |
| Net weight | ≈2.5kg |

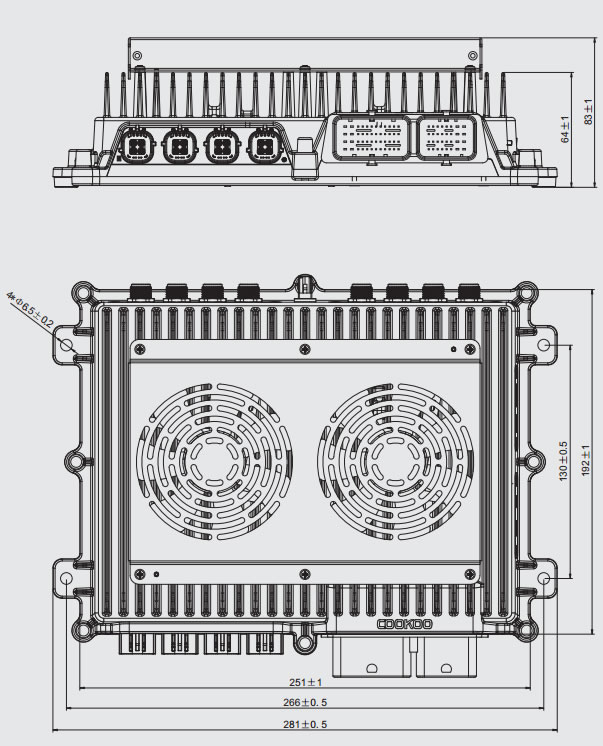

Product size
Unit: mm
