ADU507 AI edge computer

The main frequency is 2.2 Ghz, and the AI computing power is 6TOPS (INT8). The expandable Ascend 310P AI computing power card has a computing power of up to 140TOPS. It supports functional interfaces such as WiFi, GPS, Ethernet,RS232, RS485, and CAN, and can be optionally equipped with 4G and 5G communication modules. The entire machine supports multi-sensor access and can meet the requirements for building AI systems in "fixed application scenarios" in fields such as traffic road perception, industrial machine vision,and intelligent security monitoring.

Application Scenarios

Computing platform

Item	Parameter
SoC	Rockchip RK3588, built-in NPU
AI Computing Power	6 TOPS (MAX)
GPU	Mali-G610 MP4
CPU	8-core, main frequency 2.0 GHz, 4xCortex-A76+4xCortex-A55
AI Computing Card	Ascend 310P AI Card, 140TOPS (Optional)
Memory	8GB LPDDR4X
Storage	64GB eMMC 5.1
GNSS Module	Supported
WiFi Module	Supported
Communication Module	4G/5G Optional

Performance index

Item	Parameter
Working Voltage	DC12V/24V ± 20%
Working Temperature	Standard version: -30℃~+70℃ (Customizable -40℃~+75℃) With AI computing card: -20℃~+70℃ (Customizable -40℃~+75℃)
Protection Level	IP 5X
Net Weight	Approx. 2.5kg

Interface configuration

Item	Parameter
Power Input	1 group, VCC, GND
Video Output	1 channel, HDMI 2.1 Type-A
Ethernet	1 channels, independent segments, 2.5G BASE-T, POE supported (Optional) 4 channels, independent segments, 1000BASE-T, POE supported
USB	2 channels, USB3.0 supported
CAN	2 channels, CAN2.0, CANFD compatible
GPS 1PPS	2 channels, 1PPS-5V-OUT
GPS RS232	2 channels, GPS-RS232-TX
RS232	2 channels, full-duplex
RS485	2 channels, half-duplex
I/O Interface	4 channels, output 0-36V, current <50mA, or signal input
SSD Interface	1 port, storage expansion, M.2 M Key SSD supported
Other Interfaces	2 ports, Mini SIM card slot*1, computing card interface*1
Antenna	4G/5G (Optional) GNSS WiFi
Debug	1 channel, debug port, for debugging and programming
Buttons	For development test, Recovery button

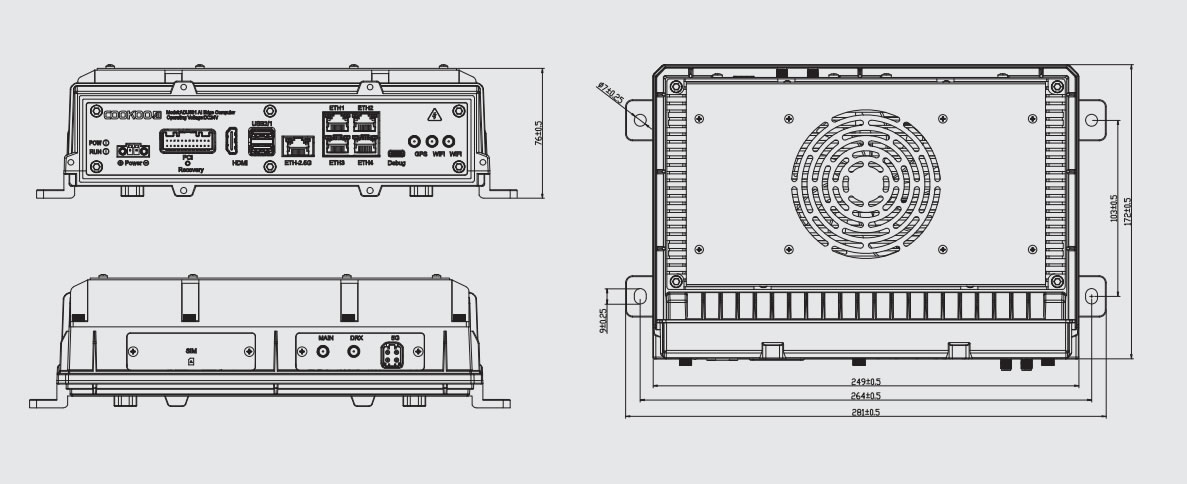

Product size Unit: mm
