CMD107-P800A 8MP digital camera
CMD107-P800A is a high-resolution automotiveLVDScamera with high dynamic range,LFM and excellent image performance. The camera includesa FalconView optical lens,an OV OX08B40 8MP CMOS image sensor and a low voltage differential signal encoder chip
Descriptions
CMD107-P800A is a high-resolution automotiveLVDScamera with high dynamic range,LFM and excellent image performance. The camera includesa FalconView optical lens,an OV OX08B40 8MP CMOS image sensor and a low voltage differential signal encoder chip.
1、product feature
- 8.3 megapixel (3840x2160) resolution, 2.1 micron pixel size, 1/1.73 inch image sensor
- Supports linear and high dynamic range(HDR) modes, high sensitivity
- SupportLED Flicker Suppression (LFM) function
- ASIL-C compliant sensor fault detection
- Support: External synchronization for multi-camera systems
- 9V~ 14V wide operating voltage input (recommended12V)
- Power consumption as low as2.95W(default output3840*2162@30 frames/s)
- YUV422 8-bit output LVDSinterface
- car gauge design
- FAKRA ZCable Connector
2、product model
| serial number | model | name | remark |
|---|---|---|---|
| 1. | CMD107-P800A-H120-V0301 | digital camera | OV OX08B40, ISPGW5300, MAX96717F, 30fps, 3840*2160, Rolling exposure, External trigger, Built-in ISP, Horizontal viewing angle120℃, -40℃~+85℃, IP69K |
3、applicable scenarios
Autonomous driving, automotiveADAS, high dynamic range imaging, other vision applications.

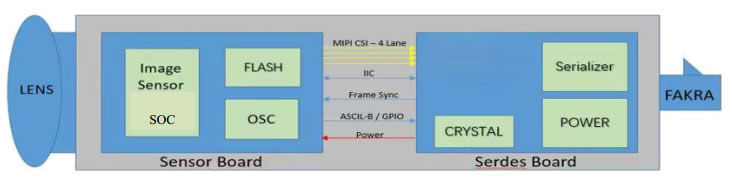

4、hardware design
Inside the camera module are sensor boards andSerDes boards. EEPROMcan store8K bytes of calibration data. FLASHcan store4 Mbytes of power-on settings. UsingMaxim 9295A as serializer,8 -bitYUV422data generatedby ISP is serialized byMaximserializer.
