CMD108-P300A 3MP digital camera
CMD108-P300A 3MP digital camera was developed using Sony CMOS image sensor (ISX031, built-in image processor)andMaxim GMSL2 serializer (Max 96717F). Compliant with vehicle grade performance requirements, high dynamic range LFMfunction and excellent imag
Descriptions
CMD108-P300A 3MP digital camera was developed using Sony CMOS image sensor (ISX031, built-in image processor)andMaxim GMSL2 serializer (Max 96717F). Compliant with vehicle grade performance requirements, high dynamic range LFMfunction and excellent image performance, low voltage differential signal encoding chip, rich viewing angle to cover a variety ofADASapplications, the camera as a whole can achieveIP 69K protection rating.
1、product feature
- Sensor: 1/2.42 inch, resolution 2.95M (1920*1536), pixel size 3.0 um.
- Frame rate: 1920*1536@30fps.
- Support HDR+LFM (LED Flicker Mitigation) mode.
- Supports AE and AWB control functions.
- AEC-Q100 Class 2qualified.
- Support external synchronization for multi-camera systems.
- 9V ~ 14V wide operating voltage input (12V recommended).
- Power consumption is 1W (1920*1536@30fps, 12V).
- YUV422 8-bit output LVD interface.
- Design of car gauge class.
- Fakra Z-typecable connector.
2、product model
| serial number | model | name | remark |
|---|---|---|---|
| 1. | CMD108-P300A-H120-V0301 | digital camera | ISX031 (ISPbuilt in), MAX96717F, 30fps, 1920*1536, Rolling exposure, external trigger, horizontal viewing angle120degrees, -40℃~+85℃, IP69K |
3、 applicable scenarios

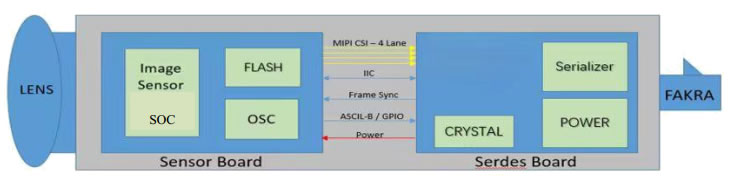

4、hardware design
The camera includes a sensor board and a server board, and the internal FLASH can store 4 megabytes of calibration settings. Use Maxim 96717Fserializer. The8-bitYUV422data from the built-in ISP is serialized out byMaxim serializer.
