CMD108-P200A 2MP digital camera
The CMD108-P200A 2MP digital camera isdeveloped and designed using SonyCMOS image sensor (ISX031, built-in image processor)andMaxim GMSL2 serializer (Max 96717F). Compliant with vehicle grade performance requirements
Descriptions
The CMD108-P200A 2MP digital camera isdeveloped and designed using SonyCMOS image sensor (ISX031, built-in image processor)andMaxim GMSL2 serializer (Max 96717F). Compliant with vehicle grade performance requirements, high dynamic rangeLFMfunction and excellent image performance, low voltage differential signal encoding chip, rich viewing angle to cover a variety ofADASapplications, the camera as a whole can achieveIP 69K protection rating.
1、 product feature
- Sensor: 1/2.42inch, resolution2.95M( 1920*1536), pixel size 3.0 um.
- Frame rate: 1920*1080at 30fps (default),customizable at 60fps.
- Support HDR+LFM (LED Flicker Mitigation) mode.
- SupportsAEandAWBcontrol functions.
- AEC-Q100 Class 2qualified.
- Support external synchronization for multi-camera systems.
- 9V ~14V wide operating voltage input (12Vrecommended).
- Power consumption is 1W (1920*1080@30fps, 12V).
- YUV422 8-bit outputLVD interface.
- Design of car gauge class.
- Fakra Z-typecable connector.
2、 product model
| serial number | model | name | remark |
|---|---|---|---|
| 1. | CMD108-P200A-H120-V0301 | digital camera | ISX031 (ISPbuilt in), MAX96717F, 30fps, 1920*1080, Rolling exposure, external trigger, horizontal viewing angle120°, -40℃~+85℃ IP69K |
| 2. | CMD108-P200A-H202-V0301 | digital camera | ISX031 (ISPbuilt in), MAX96717F, 30fps, 1920*1080, Rolling exposure, external trigger, horizontal viewing angle202°, -40℃~+85℃, IP69K |
3、applicable scenarios
4、hardware design

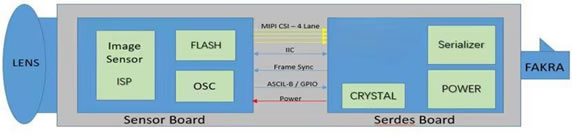

The camera includes a sensor board and a server board, and the internalFLASH can store4 megabytes of calibration settings. Use Maxim 96717F serializer. The8-bitYUV422data from the built-in ISP is serialized out byMaxim serializer.
