CMD107-P130A 1.3MP digital camera
CMD107-P130A1.3MP digital camera was developed using OV OX01G10 image sensor (built-in image pro
Descriptions
CMD107-P130A1.3MP digital camera was developed using OV OX01G10 image sensor (built-in image processor) and MaximGMSL2serializer(MAX96701). It meets the requirements of vehicle specification level performance, supports wide dynamicHDR,has low voltage difference signal encoding chip, rich viewing angle can cover a variety ofADASapplications, and the overall camera can reachIP 69Kprotection level.
1、product feature
- Image sensor: 1/3.55inch, resolution: 1.3M (1340×1020), pixel size3.0 microns.
- Frame rate: 30 frames per second at 1280*960resolution (default).
- Image sensor processing functions: automatic exposure control/automatic gain control/automatic white balance, lens correction, bad dot correction, high dynamic range combination, tone mapping and automatic black level correction.
- Support external synchronization of multi-camera systems.
- Operating voltage: 9to14 V (12 V recommended).
- Power consumption: 0.65W.
- Output interface: YUV422 8-bit LVDS interface.
- Automotive grade design and manufacturing.
- FAKRA Z-type cable connector.
2、product model
| serial number | model | name | remark |
|---|---|---|---|
| 1. | CMD107-P130A-H125-V0301 | digital camera | OVOX01G10 (ISPbuilt in), MAX96701, 30fps, 1280*960, roller shutter exposure, external trigger, horizontal viewing angle 125degrees, -40℃~+85℃, IP69K |
| 2. | CMD107-P130A-H195-V0301 | digital camera | OVOX01G10 (ISPbuilt in), MAX96701, 30fps, 1280*960, roller shutter exposure, external trigger, horizontal viewing angle 195degrees, -40℃~+85℃, IP69K |
3、applicable scenarios
4、hardware design

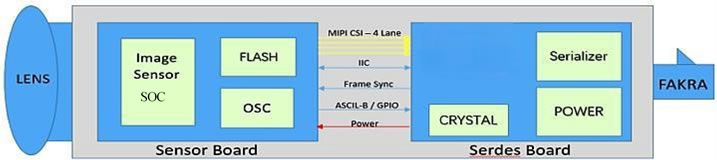

The camera includes a sensor board and a server board. FLASHcan store4 Mbytes of startup settings. UsingMaxim 96701 Serializer. The8-bitYUV422 data from the built-in ISP is serialized out byMaxim serializer.
