AutoCabin-A02 remote cockpit

1 product overview

　　1.1  product introduction

　　AutoCabin-A02 remote cockpit system kit: adopts real vehicle steering wheel, accelerator pedal, front and rear adjustable seats, 1:1 torestore real driving feeling; internally configured with high-computing industrial host, HD display card, equipped with27-inch triple screen, creating embracing visual effect, immersive real-time simulation of live driving experience, and equipped with touch panel to give consideration to professionalism and ease of use. It is mainly used in unmanned sanitation, unmanned logistics, unmanned mines, unmanned ports, unmanned taxis, unmanned shared vehicles, intelligent engineering machinery, wheeledrobots and other scenarios to realize remote vehicle driving and remote operation control.

　　Supporting products and services: It can provide full-stack software and hardware solutions for remote driving system, including cloud software, cabin software, vehicle software, vehicle controller, project adaptation integration service, etc.

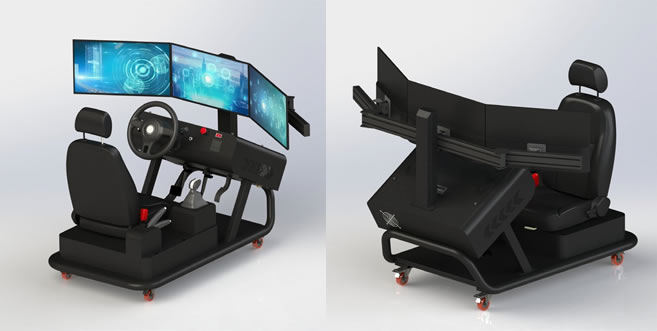

　　Figure1-1       AutoCabin-A02rendering

1.2 product model

​1.3   system structure

　　Cockpit subsystem consists of cockpit host, remote cockpit, remote simulation driving kit, remote driving display screen, etc. Extensible voice communication terminal equipment.

2 hardware design

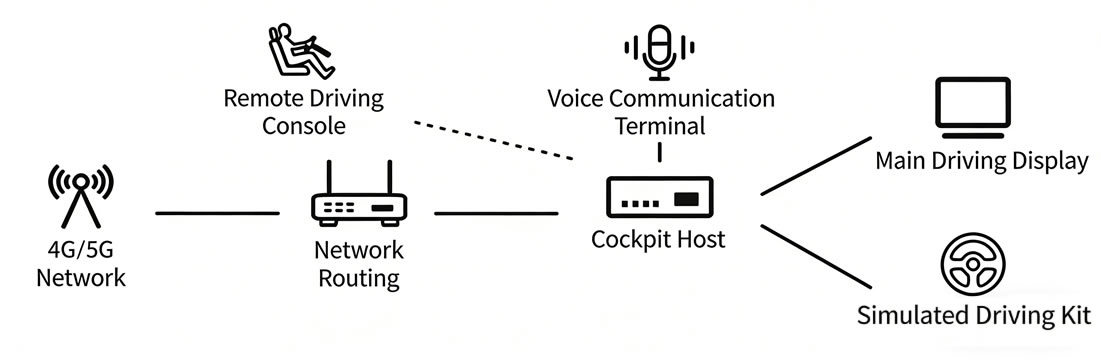

　　AutoCabin-A02remote cockpit hardware design block diagram is shown in Figure 2-1. The remote cockpit mainly includes remote cockpit,remote driving host, display screen, voice communication terminal and simulation driving kit, etc. The hardware design complies with the requirements of "vehicle regulation, functional safety and information safety". After years of development, our company has achieved "technology platform, product standardization", and can quickly adapt models and implement projects.

　　Figure2-1       AutoCabin-A02Hardware Design BlockDiagram

  master device
