AutoCabin-A01 remote cockpit

1、product overview

　　AutoCabin-A01 remote cockpit system kit: adopts real vehicle steering wheel, real vehicle accelerator pedal, front and rear adjustable seat,1:1 restore real driving feeling; internally configured with high-computing industrial host, high-definition display card, equipped with49-inch high-definition curved screen (DFHD), creating embracing visual effect, immersive real-time simulation of live driving experience, and equipped with touch panel to balance professionalism and ease of use. It is mainly used in unmanned sanitation, unmanned logistics, unmanned mines, unmanned ports, unmanned taxis, unmanned shared vehicles, intelligent engineering machinery, wheeled robots and other scenarios to realize remote vehicle driving and remote operation control.

　　Supporting products and services: It can provide full-stack software and hardware solutions for remote driving system, including cloud software, cabin software, vehicle software, vehicle controller, project adaptation integration service, etc.

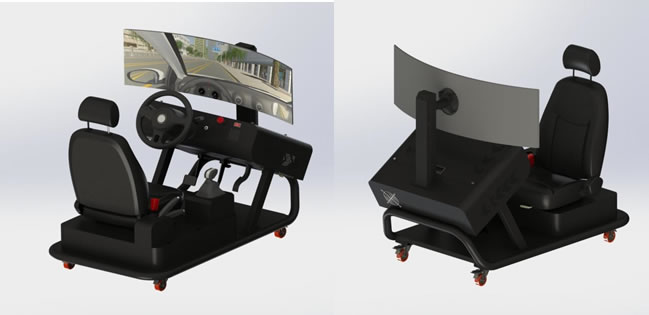

　　Figure1-1       AutoCabin-A01 rendering

        1.1 product model

　　1.2         system structure

　　Cockpit subsystem consists of cockpit host, remote cockpit, remote simulation driving kit, remote driving display screen, etc. Extensible voice communication terminal equipment.

2、hardware design

　　AutoCabin-A02remote cockpit hardware design block diagram is shown in Figure 2-1. The remote cockpit mainly includes remote cockpit,remote driving host, display screen, voice communication terminal and simulation driving kit, etc. The hardware design complies with the requirements of "vehicle regulation, functional safety and information safety". After years of development, our company has achieved "technology platform, product standardization", and can quickly adapt models and implement projects.

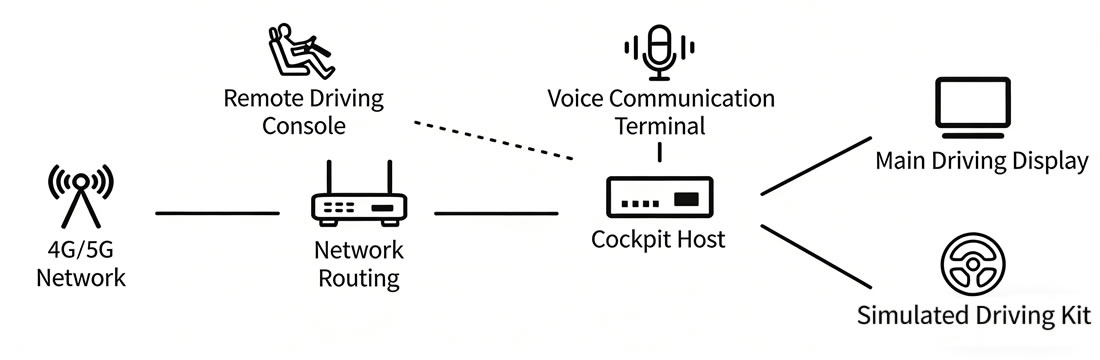

　　Figure2-1       AutoCabin-A01Hardware Design BlockDiagram

2.1 master device
